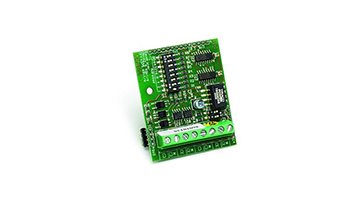

DETECTOMAT CP BBI Bitbus interface
Plug in module for a network integration of the fire control panels
• Plug in board for direct mounting into the fire control panels detect 3004plus
• Suitable for a direct connection of 2 network participants with a distance of up to 1.200 m
• For up to 64 network participants in one network
• Voltage supply via the fire control panel
Technical Data
-
Supply Voltage 24 V DC
-
Protection class IP 20
-
Ambient temperature -5°C to +40°C
-
Humidity 5% to 95% (not condensing)
-
Dimensions (H x B x T) 49 mm x 59 mm x 20 mm
-
Weight appr. 25 g
