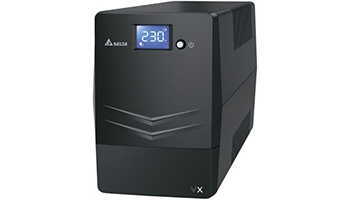

DELTA VX UPS 1500VA 230V VX-1500VA
Power supply - UPS - Design and features
UPS Line Interactive technology
Output power capacity 900 W
Maximum value of electric power 1500 VA
Rated output voltage 230 V
Voltage phase Single
LCD status declaration method
Surge Protection
Power supply - UPS - Output characteristics
Maximum output voltage 230 V
Maximum output frequency 60 Hz
Minimum output frequency 50 Hz
Output Power Connectors
IEC-320 C13 6
Power supply - UPS - Input characteristics
Maximum input voltage 280 V
Minimum input voltage 170 V
Maximum input frequency 60 Hz
Minimum input frequency 50 Hz
Power supply - UPS - Battery
Battery location Internal
Battery recharge time 8 hr
Power supply - UPS - Operating conditions
Max. operating ambient temperature 40 ° C
Max. ambient humidity 90%
Min. operating ambient temperature 0 ° C
Min. operating humidity 0%
Max. working altitude 1000 m
Power supply - UPS - Miscellaneous
Exterior color Black
Power supply - UPS - Dimensions and weight
Depth 320 mm
Height 182 mm
Width 130 mm
Nominal weight 10.4 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 10.8 kg
Package weight - Net (kg) 10.4 kg
Number in package 1
Carton weight - Gross (kg) 10.8 kg
Retail Packaging Net Weight Carton 0.2 kg
Retail Packaging Net Weight Plastic 0.2 kg
Packages in cartons 1
Box type package
