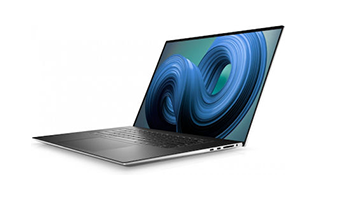

DELL STRADALE_ADLP_2301_1500_WIN_11-14 XPS 17 9720



Dell XPS 17 (9720), Intel Core i7-12700H (24MB, up to 4.7 GHz, 14C), 17.0" UHD+ (3840x2400) InfinityEdge Touch AR, 16GB (2x8GB) DDR5 4800MHz, 1TB NVMe SSD, GeForce RTX 3060 6GB GDDR6, BT, Backlit KBD, Win 11 Pro, 3Y Premium Support



Processor

Processor Intel® Core™ i7 Mobile Processor 12700H

Number of CPU cores 14

Threads Quantity 20

Processor - Core Name Alder Lake

Turbo Clock Rate up to 4.7 GHz

CPU Cache Size 24 MB

Socket 1744 processor socket

Intel H45 motherboard chipset

Memory

DDR5 SDRAM memory technology

Memory Speed/Frequency 4800MHz(PC5-38400)

Memory form factor SODIMM 262-pin

Installed RAM 16 GB (2x8GB)

Maximum Installable RAM 64 GB

Total number of memory slots 2

Data storage device

Solid State Drive 1 TB, PCIe NVMe, M.2 Form Factor

Screen

Diagonal screen length 17"

Screen type LCD

Display technology Active TFT matrix

Screen Color Color

Maximum resolution 3840x2400

Maximum video refresh rate 60 Hz

Display Features Touch screen

Anti-Reflective

WVA

InfinityEdge

10 Point Touch-Screen

500 nits Brightness

Low Blue Light

UHD+

Audio output

Audio chipset Realtek ALC711-CG

Compatible audio standards High Definition Audio

Video output

Number of installed video cards 1

Nvidia GeForce RTX 3060 video card chipset

Memory type GDDR6 SDRAM

Video memory type Video card memory

Installed Video Memory 6 GB

Additional video card Integrated Intel Iris Xe Graphics

Network specifications

LAN No

WI-FI IEEE 802.11ax Wi-Fi 6

Bluetooth Bluetooth 5.2

Slots provided

M.2 expansion slot standard (x2)

Supported interfaces

Thunderbolt 4 4 (USB Type-C)

Headphone port 1 (3.5 mm mini jack)

System

System type Laptop

Keyboard Features Backlit keyboard

Webcam Yes

Built-in Accelerometer devices

Touchpad

Speakers

Microphone

Card Reader

Flash memory type SD 4.0

Security features Security Lock Slot

Audio/Video Features Support native DisplayPort output over USB‑C

Support Thunderbolt 4 digital video output

Included accessories Documentation

Software

PC platform compatibility

Microsoft Windows 11 Pro operating system installed

Power

Power supply location External

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Type of power connectors USB-C

Battery

Battery Technology Lithium Ion Polymer

Number of batteries installed 1

Dimensions and weight

Depth 248.08 mm

Height 13.15 mm

Width 374.48 mm

Terms of use

Maximum ambient temperature 35 °C

Minimum ambient temperature 0 °C

Max. ambient air humidity 90 %

Min. working air humidity 10 %

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in idle mode 0 %

Max. working altitude 3048 m

Max. storage altitude 10668 m

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

Premium Support

Logistics information

Entry code All

Package Weight - Gross (kg) 2 kg

Package Weight - Net (kg) 0 kg

Quantity per pack 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type Box
