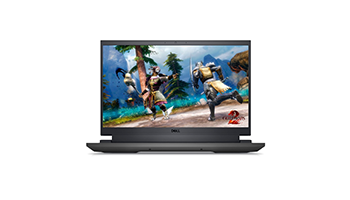

DELL SIF15_ADLP_2301_1800_UBU-14 G15 5520 Gaming Laptop



Dell G15 5520 Gaming Laptop, Intel Core i7-12700H (24MB Cache, up to 4.7 GHz, 14 cores), 15.6" FHD (1920 x 1080) 120Hz 250 nits AG, 16GB (2x8GB) 4800MHz DDR5, 512GB SSD, RTX 3060 6GB GDDR6, AX201, Wi-Fi + BT, Backlit KBD, Ubuntu, 3Y Onsite



Processor

Processor Intel® Core™ i7 Mobile Processor 12700H

Number of CPU cores 14

Threads Quantity 20

Processor - Core Name Alder Lake

Internal clock frequency 3.5 GHz

Turbo Clock Rate up to 4.7 GHz

CPU Cache Size 24 MB

Socket 1744 processor socket

System on Chip (SoC) motherboard chipset

Memory

DDR5 SDRAM memory technology

Memory Speed/Frequency 4800MHz(PC5-38400)

Memory form factor SODIMM 260-pin

Installed RAM 16 GB (2x8GB)

Maximum Installable RAM 32 GB

Total number of memory slots 2

Data storage device

Solid State Drive 512 GB, PCIe NVMe, M.2 Form Factor

Screen

Diagonal screen length 15.6"

Screen type LCD

Display technology Active TFT matrix

Screen Color Color

Maximum resolution 1920x1080

Maximum video refresh rate 120 Hz

Image - aspect ratio 16:9

Full HD display features

anti-Glare

WVA

250 nits Brightness

Audio output

Audio chipset Realtek ALC3254

Audio output type Stereo

Compatible audio standards High Definition Audio

Video output

Number of installed video cards 1

Nvidia GeForce RTX 3060 video card chipset

Memory type GDDR6 SDRAM

Video memory type Video card memory

Installed Video Memory 6 GB

Network specifications

LAN Gigabit Ethernet

WLAN M.2

WI-FI IEEE 802.11n Wi-Fi 4

IEEE 802.11ac Wi-Fi 5

IEEE 802.11ax Wi-Fi 6

Bluetooth Bluetooth 5.0

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

M.2 expansion slot standard (x2)

Supported interfaces

Thunderbolt 4 1 (USB Type-C)

LAN 1 (RJ-45)

Headphone port 1 (3.5 mm mini jack)

HDMI 1 (HDMI (Type A))

USB 3.2 Gen 1 3 (USB 3.2 (type A))

System

System type Laptop

Keyboard Features Backlit keyboard

Web camera 0.9 Mpixel

Built-in Touchpad devices

Speakers

Microphone

Audio/Video Features Support native DisplayPort output over USB‑C

Included accessories Power adapter

Cables included Power cord

Software

PC platform compatibility

Linux Ubuntu operating system installed

Power

Power supply location External

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Battery

Battery Technology Lithium Ion Polymer

Number of batteries installed 1

Dimensions and weight

Depth 272.11 mm

Height 21.32 mm

Width 357.26 mm

Nominal weight 2.81 kg

Terms of use

Maximum ambient temperature 35 °C

Minimum ambient temperature 0 °C

Max. ambient air humidity 90 %

Min. working air humidity 10 %

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in idle mode 0 %

Max. working altitude 3048 m

Max. storage altitude 10668 m

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

On site

Logistics information

Entry code All

Package Weight - Gross (kg) 2 kg

Package Weight - Net (kg) 0 kg

Quantity per pack 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type Box
