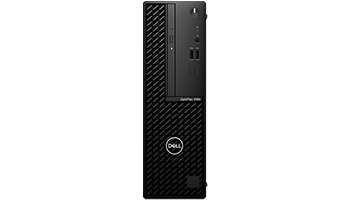

DELL N011O3090SFF_UBU-14 OptiPlex 3090 SFF



Dell Optiplex 3090 SFF, Intel Core i5-10505 (6C, 12M Cache, 3.2 GHz up to 4.60Ghz), 8GB(1X8)DDR4, 256GB NVMe PCIe SSD,DVD-RW, Integrated Graphics, No Wireless, Keyboard and Mouse, Ubuntu, 3Yr Basic Onsite



System

System type Personal computer

System form factor Small box

Processor

Processor Intel Core i5-10505 Processor

Internal clock frequency 3.2 GHz (up to 4.6 GHz)

Number of CPU cores 6

Threads Quantity 12

Maximum CPU bus clock speed 8 GT/sec

Socket 1200 processor socket

Number of installed processors 1

Max. number of installed processors 1

CPU Cache Size 12 MB

Intel Q470 motherboard chipset

Features Supports 14 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Offers a non-ECC error checking method

Amount of installed system memory 8 GB

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Memory Features Unbuffered

Controller

Built-in Storage Controller:

SATA III-600 (2)

Storage Controller:

M.2

Support Wi-Fi Controller:

M.2

Data storage device

Solid State Drive 256 GB, PCIe NVMe

Optical data storage device

Disc drive type DVD±RW

Device Location Built-in

Video output

Video controller - form factor Built-in

Intel UHD Graphics 630 video card chipset

Video memory type Shared video memory

Audio output

Audio controller - form factor Built-in

Compatible audio standards Waves MaxxAudio

High Definition Audio

Loudspeaker

Audio output type Mono

Number of speakers 1

Type of input devices

Input device type Mouse

Keyboard

Network specifications

Network Drive Form Factor Embedded

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

Number of 3.5-inch / 2.5-inch Internal Drive Bays 1

Number of thin, external sockets 1

Slots provided

PCI Express 3.0 x16 1

PCI Express 3.0 x1 1

Supported interfaces

LAN 1 (RJ-45)

USB 2.0 4 (USB 2.0 (type A))

USB 3.2 Gen 1 4 (USB 3.2 (type A))

Audio interface 2 (3.5 mm mini jack)

DisplayPort 2

Software

Linux Ubuntu operating system name

Power

Power supply type Power supply module

Power Location Internal

Input voltage AC 90-264 V

Input frequency 47/63 Hz

Number of installed power supplies 1;

Max. number of supported power supplies 1

Maximum output power 200 W

Other features

Exterior color Black

Terms of use

Maximum ambient temperature 35 °C

Minimum ambient temperature 0 °C

Max. ambient air humidity 90 %

Min. working air humidity 10 %

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in idle mode 0 %

Max. working altitude 3048 m

Max. storage altitude 10668 m

Dimensions & weight

Height 290 mm

Depth 292.8 mm

Width 92.6 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term notes On site, Basic

Logistics information

Package Weight - Gross (kg) 4 kg

Package Weight - Net (kg) 0 kg

Quantity per pack 1

Carton weight - Gross (kg) 4 kg

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type Box
