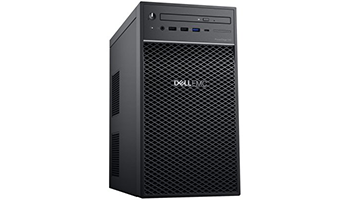

DELL EMC PET40-CFG01-14 PowerEdge T40



PowerEdge T40,3.5" MT Chassis,3 Cabled HDD,Soft. RAID,Xeon E-2224G 3.5G 8M 4C/4T,8GB 2666MT/s DDR4 ECC,1TB 7.2K SATA 6Gbps Entry,TPM 2.0,1x1GbE LOM(I219),DVD+/-RW,Intel AMT,1xPCIe x16,2xPCIe x4,PCI slot,2xDP,Serial,PS/2,300W PSU,9 USB+1 C-type,3Y NBD



The system

Server system type

Form factor of the Mini Tower system

Processor

Intel Xeon Processor E-2224G Processor

3.5 GHz internal clock frequency (up to 4.7 GHz)

Number of CPU cores 4

Threads Quantity 4

Socket 1151 processor socket

Number of processors installed 1

Max. number of installed processors 1

CPU Cache Size 8 MB

Intel C246 motherboard chipset

Characteristics Supports 14 nm Processors

Number of supported motherboards 1



Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2666MHz (PC4-21300)

Proposes an ECC error checking method

Amount of installed system memory 8 GB

Maximum amount of installed memory 64 GB

Total number of memory slots 4

Memory characteristics Unbuffered



Controller

Built-in RAID Controller:

Intel Virtual RAID on CPU

Supports: Level 0, Level 1, Level 10, Level 5

Storage Controller:

SATA

Data storage device

Hard Disk Drive 1 TB, 7200 rpm, SATA III-600



Optical storage device

DVD drive type ± RW

Device location Internal

Optical drive - Type of SATA interface



Video output

Video controller - form factor Built-in

Intel UHD Graphics P630 video card chipset

Video memory type Shared video memory



Network specifications

Network device form factor Built-in

Intel i219 network card chipset

Gigabit Ethernet LAN

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Nests provided

Number of internal slots for 3.5-inch devices 3

Number of thin, outer sockets 1



Slots provided

PCI Express 3.0 x16 1

PCI Express 3.0 x4 2

PCI 1



Supported interfaces

LAN 1 (RJ-45)

USB 2.0 4 (USB 2.0 (type A))

USB 3.0 5 (USB 3.0 (type A))

USB 3.1 1 (USB Type-C)

Serial 1 (9-pin)

DisplayPort 2

PS / 2 2

Audio Line-In 1 (3.5mm mini jack)

Headphones 1 (3.5 mm mini jack)



Power

Power type Power supply module

Power supply location Internal

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 1;

Max. number of supported power supplies 1

Maximum output power 300 W

Operating Current 6 A



Other features

Exterior color Black



Operating conditions

Max. operating ambient temperature 35 V ° C

Max. ambient humidity 80%

Min. operating ambient temperature 10 V ° C

Min. operating humidity 20%

Max. working altitude 3048 m



Dimensions and weight

Height 335 mm

Depth 359.5 mm

Width 176.53 mm

Nominal weight 8 kg



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Warranty Deadline Next Business Day



Logistic information

Package weight - Gross (kg) 10 kg

Package weight - Net (kg) 0 kg

Number in package 1
