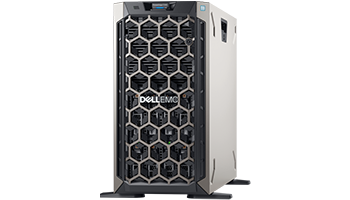

DELL EMC PET340CEEM01-02-14 PowerEdge T340



PE T340 Server,Xeon E-2234 3.6GHz 8M 4C/8T,3.5" Chassis x8 Hot Plug HDD,16GB UDIMM 3200MT,iDrac9 Basic,1TB 7.2K RPM SATA 3.5",PERC H330 RAID,DVD +/-RW,(1+1)495W,On-Board LOM Dual port 1Gbe,TPM 2.0,3Y NBD



The system

Server system type

Tower form factor

Processor

Intel Xeon E-2234 Processor

Internal clock frequency 3.6 GHz (up to 4.8 GHz)

Number of CPU cores 4

Threads Quantity 8

Maximum CPU bus clock speed 8 GT / sec

Socket 1151 processor socket

Number of processors installed 1

Max. number of installed processors 1

CPU Cache Size 8 MB

Characteristics Supports 14 nm Processors

Number of supported motherboards 1



Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 3200MHz (PC4-25600)

Amount of installed system memory 16 GB

Maximum amount of installed memory 64 GB

Total number of memory slots 4

Memory characteristics Unbuffered



Controller

Plug-in-card RAID Controller:

PERC H330

Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60

SAS / SATA (4 x SFF-8644)

Remote Management Controller:

iDRAC9 Basic



Data storage device

Hard Disk Drive 1 TB, 7200 rpm, SATA III-600, 3.5 "Form Factor



Optical storage device

DVD drive type ± RW

Device location Internal



Video output

Video controller - form factor Built-in

Number of installed video cards 1

Matrox G200 video card chipset

Video memory type Video card memory

16 MB video memory installed



Network specifications

Network device form factor Built-in

Gigabit Ethernet LAN

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Nests provided

Number of Hot-Swap sockets for 3.5-inch devices 8



Slots provided

PCI Express 3.0 x8 2

PCI Express 3.0 x4 1

PCI Express 3.0 x1 1



Supported interfaces

USB 3.0 3 (USB 3.0 (type A))

USB 2.0 4 (USB 2.0 (type A))

LAN 2 (RJ-45)

Serial 1 (9-pin)

VGA 1 (15-pin D-sub)

Management Port 1 (Micro USB)



Power

Power supply type - hot-plug / redundant

Power supply Plug-in-module

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 2; Redundant (1 + 1)

Max. number of supported power supplies 2

Maximum output power 495 W



Other features

Exterior color Black



Dimensions and weight

Height 430.3 mm

Depth 545.4 mm

Width 218 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Warranty Deadline Next Business Day



Logistic information

Package weight - Gross (kg) 20 kg

Package weight - Net (kg) 0 kg
