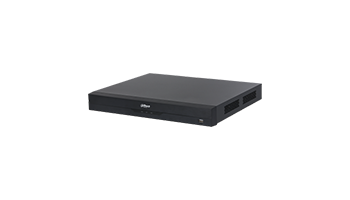

DAHUA XVR7104HЕ-4K-I2 IoT/IVS AICoding/H.265+ video recorder



IoT/IVS AICoding/H.265+ 8Mpix/4Mpix-RealTime 4(8)-Channel HDCVI/TVI/AHD/Analog/IP Pentabrid Digital Recorder (DVR); Built-in facial recognition algorithm, Built-in SDM Plus perimeter security algorithm with object classification; Supports cameras with resolution up to 8Mpix. Recording: 8Mpix(3840x2160)-60fps, 6Mpix/5Mpix-80fps, 4Mpix/3Mpix/2Mpix/720P - Realtime 100fps. Supports 4x HDCVI, IP or analog cameras in any combination. 4x BNC video inputs with automatic HDCVI/TVI/AHD/Analog detection, 4x RCA audio inputs, 1x RCA audio output, 4x coaxial audio channel recording (HDCVI channel) with improved encoding and modulation algorithm for Broadcast sound quality, 1x VGA, 1x 4K HDMI (3840x2160) outputs with SPOT function, hard disk up to 1 pc. SATA /up to 10TB disk/. Features: Motion recording; CVI alarm; continuous; on schedule, system alarms, diagnostic alarms, sabotage, smart search, SmartFan, play audio file on alarm, BackUP, FTP Upload, P2P. Smart functions for HD cameras: 2x Face recognition (up to 20,000 faces, up to 10 databases), 4x SMD Plus with human and vehicle discrimination, 2x Face detection, Intelligent AI search, Perimeter security: 2x AI Crossing line with SMD Plus, 2x AI Entering an area with SMD Plus. IoT functions: Visualization of temperature and humidity, alarm when reaching set temperature/humidity, alarm from IoT wireless motion detectors, fire, flood, panic buttons, alarm from IoT cameras, Mobile Push notifications. AllOverCoax HDCVI: Transmission of various signals over 1 cable (Coax/UTP/FTP): Video, Audio, Alarm, PTZ & OSD control, Camera upgrade. Interfaces: RJ-45 Port (100M), 8x alarm inputs, 3x alarm outputs, 1x RS485 – for PTZ and ARB1606 alarm expander, 2x USB2.0. Ability to add up to 4 IP cameras (4+4), 8Mpix (max 128Mbps incoming traffic), Smart features from Dahua IP cameras (all cameras), compatibility: ONVIF 2.4.2, Dahua, TVT, Hunt, AXIS and others. Monitoring applications: Windows; MAC; Linux; Android; iOS; up to 64 user accounts. Updated intuitive GUI in Bulgarian and mouse control, WEB Plugin free interface. DC12V/10W without HDD. Dimensions 325×257×55mm.



Weight 1.900 Kgr
