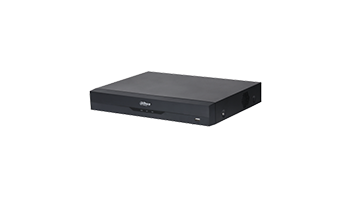

DAHUA XVR5216A-4KL-I3 16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder



• 16-channel HDCVI Pentabrid Wiz Sense video recorder

• 7 fps per camera recording at 4K, 10 fps at 6MP, 12 fps at 5MP, 15 fps at 4MP and 3MP, 25 fps at 2MP

• Supports 16 HDCVI, AHD, HDTVI, analog cameras + 16 IP cameras, IP camera limit – 8MP

• Maximum incoming traffic 128Mbps for IP cameras, H.265+/H.265/ H.264+/H.264 compression, 2 SATA HDD (up to 2x16TB), 1 VGA and HDMI outputs, 16 alarm inputs/3 outputs, 4 analog audio input, RS485

• Supports audio over coaxial cable

• Recording modes – permanent, with motion detection

• "Perimeter protection" on 2 channels (HDCVI, AHD, HDTVI) – entering a zone, crossing a line of people and cars

• "SMD Plus" detection of people and cars on 16 channels (HDCVI, AHD, HDTVI) • "Face Detection" on 2 channels (HDCVI, AHD, HDTVI) recognition of up to 12 faces per second (when adding an IP camera, the intelligent functions)

• Mobile application, TCP/IP, CMS, POS function, IoT, 1 RJ-45 Port (1000 MB), 1 USB 2.0, 1 USB 3.0

• Up to 128 users, mouse control

• 12VDC/5A, 15W

• Dimensions 375x289x53 mm

• No hard drive



Net Weight 1.90 kg (4.20 lb)

Gross Weight 3.20 kg (7.00 lb)
