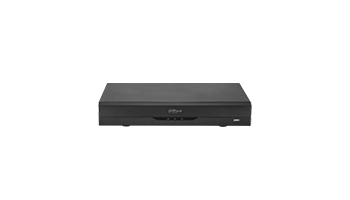

Dahua XVR5116H-4KL-I3 16 Channels Penta-brid 4K-N/5MP Mini 1U 1HDD WizSense Digital Video Recorder



> H.265+/H.265 dual-stream video compression.

> Supports Full-channel AI-Coding.

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

> Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.

> Up to 8 channels video stream (analog channel) Perimeter Protection.

> Up to 16 channels video stream (analog channel) SMD Plus.

> Up to 2 channels video stream (analog channel) human face recognition.

> IoT & POS functionalities.



AICoding/H.265+/H.264+ 8Mpix/4K 16(32)-channel HDCVI/TVI/AHD/Analog/IP Pentabrid AI Digital Recorder (DVR); Built-in face recognition algorithm, Built-in SMD Plus perimeter security algorithm with object classification; Supports cameras with resolution up to 8Mpix. Recording: 8 Mpix (3840x2160)-112 fps, 6 Mpix-160 fps, 5 Mpix- 192 fps, 4 Mpix/3 Mpix - 240 fps, 1080P Realtime(1920x1080)-400 fps. or 720P Realtime (1280x720)-400 fps. Supports 16x HDCVI, IP or analog cameras in any combination. 16x BNC video inputs with automatic detection HDCVI/TVI/AHD/Analog, 16x RCA audio input/1x RCA audio output, 16-channel audio recording via coaxial (HDCVI channel) with improved encoding and modulation algorithm for Broadcast sound quality, Video outputs: 1x VGA, 1x 4K HDMI (3840x2160), hard disk up to 1 pc. SATA /up to 16TB disk/. Features: Motion recording; CVI alarm; continuous; on schedule, system alarms, diagnostic alarms, sabotage, smart search, SmartFan, play audio file on alarm, BackUP, FTP Upload, P2P. Smart features for HD cameras: 2x Face Recognition (up to 20,000 faces, up to 10 databases), 16x SMD Plus with human and vehicle discrimination, 2x Face Detection, Intelligent AI Search, 8x AI Line Crossing with SMD Plus, 8x AI Zone entry with SMD Plus. AllOverCoax HDCVI: Transmission of various signals over 1 cable (Coax/UTP/FTP): Video, Audio, Alarm, PTZ & OSD control, Camera upgrade. Interfaces: Gigabit RJ-45 Port (1000M), 1x RS485 - for PTZ, 1x USB2.0, 1x USB3.0. Ability to add up to 16 IP cameras (16+16), 8Mpix (max 128Mbps incoming traffic), compatibility: ONVIF 21.06. Monitoring applications: Windows; MAC; Linux; Android; iOS; up to 64 user accounts. Intuitive GUI in Bulgarian and mouse control, WEB Plugin free interface. DC12V/15W without HDD. Dimensions 325×257.1×55mm.
