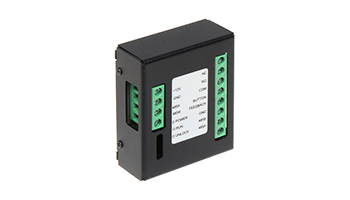

Dahua DHI-DEE1010B RELAY MODULE



The DEE1010B module allows the expansion of video doorphone features for control of another door or gate. Built-in relay output allows to control any NO / NC device. The output is switched by video doorphone or mobile phone (DMSS application).

Attention! In the case of connecting the module to the VTO2000A-2, the DHI-VTNC3000A converter is required.



Support: DHI-VTO2000A, VTO2000A-C, VTO2000A-2-VTOB107

Number of relay outputs: 1

Outputs: NO / NC

Interface: RS-485, Twisted-pair cable - pair of wires

Main features: Output button support

Operation state indication: LED indication

Power supply: 12 V DC

Weight: 0.094 kg

Dimensions: 59  x 50  x 21 mm
