Technical Specification

Name

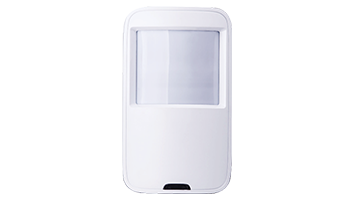

Wireless passive infrared sensor

Detection

Passive infrared

Detection Range

12m×12m, 90°

Alarm prompt

Red led, can be set to switch off

Sensitivity

Two level (jumper)

Wireless Frequency

433MHz/868MHz/915MHz

Transmit power

10dBm

Transmit distance

150m open area/no interference

Pet immunity

≤18Kg

Resistance light

6500LUX

Working environment

-10°C~+50°C, humidity <95°

Overall dimensions/weight

105mmx62mmx41.3mm/0.1kg

Tamper

Unit protection and leaving-wall protection

Power

1xCR123A battery, 3V 50mA

Installation height

Wall mount, 2.2-2.5m

Certifications

CE, FCC, MABISZ
