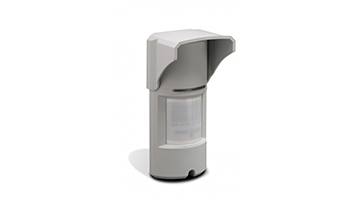

Crow EDS-2000 outdoor sensor

QUAD PIR & MW combined sensor for outdoor installation

• Immunity for pets up to 55kg (110Lbs)
• Four-element pyroelectric sensor
• X-Band 10.525GHz / 10.687GHz
• K-Band 24.125GHz microwave
• Range 15m with mounting height 2.4m
• Operating temperature: -35 ° to + 55 ° C
• Supply voltage: 9.6 to 16 Vdc
• Meets standard: IEC61000-4-5 and EN-50130-4
• Relay output: 28Vdc, 0.1A
• EDS-2000 AM Anti-Masking Option, Class IP55

Dimensions: 175 x 70 x 45 mm
