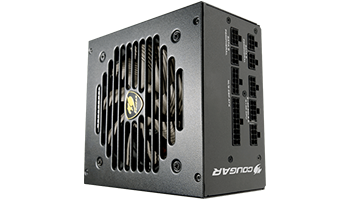

COUGAR GEX 850, 850W, 80 Plus Gold CG31GE085001P01



COUGAR GEX 850, 850W, 80 Plus Gold, Fully Modular Power Supply Unit, Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP, Over Temperature Protection, COUGAR HDB Fan, Ultra-stable Voltage Outputs, Superior fan Curve Tuning, Dimensions: 160x150x86 (mm)



Design and features

Power supply type Power supply module

Power Location Internal

ATX form factor

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Power input connectors - number 1

Maximum output power 850 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Curcuit Protection

Over Power

Modular Power Supply Yes

Power supply and adapter - Features Active PFC

80 Plus Certification 80 Plus Gold

Current

+ 3.3V 20 A

+ 5V 20 A

+ 12V 70.8 A (849.6 W)

-12V 0.3 A

+ 5VSB 3 A

Output connectors

24 pin connector 1

4/8-pin + 12V Power Connector 2

4 pin peripheral power connector 6

15-pin S-ATA connector 8

6/8-pin PCI Express Connector 6

system fans

Max. number of fans supported 1

Number of fans installed 1

Fan - diameter 120 mm

Operating conditions

Max. operating ambient temperature 40 V ° C

Other features

Exterior color Black

Accessories included Quick Start Guide

Dimensions and weight

Depth 150 mm

Height 86 mm

Width 160 mm

Nominal weight 1.46 kg

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 3 kg

Package weight - Net (kg) 1 kg

Number in package 1

Carton weight - Gross (kg) 3 kg

Retail Packaging Net Weight Carton 1 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in cartons 1

Box type package

EAN code 4710483770234
