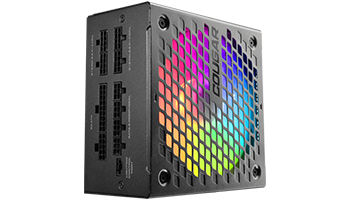

COUGAR GAMING CG31TP065056H01 PSU 650W



COUGAR AURIC 650, 650W, 80 Plus Gold, Protection: UVP, OVP, SCP, OPP, OCP, OTP, Connectors: 1x 24-pin MB, 2x 8-pin CPU, 2x PCI-E 8(6+2)-pin, 3x P-ATA, 5x S-ATA, Fully Modular, Multi-Lighting ARGB modes, 0-dB Fan Switch, 150 x 150 x 86 (mm)



Design and features

Power type Power supply module

Power supply Plug-in-module

Input voltage AC 100-240 V

Input frequency 47/63 Hz

Power input connectors - number 1

Power input connectors - type IEC-320 C14

Rated Current 10 A

Maximum output power 650 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Circuit Protection

Over Power

Modular Power Supply Yes

Power supply and adapter - Features Active PFC

RGB LED

80 Plus Certification 80 Plus Gold

Efficiency 99%



Current

+ 3.3V 20 A

+ 5V 20 A

+ 12V 54.2 A (650)

-12V 0.3 A (3.6)

+ 5VSB 3 A (15)



Output connectors

20 + 4-pin connector 1

4/8-pin + 12V Power Connector 2

4 pin peripheral power connector 3

15 pin S-ATA connector 8

6/8-pin PCI Express Connector 4



System fans

Number of fans installed 1

Fan - diameter 135 mm



Operating conditions

Maximum ambient temperature 50 ° C

Minimum ambient temperature 10 ° C

Max. ambient humidity 85%

Min. operating humidity 20%

Max. ambient temperature in off mode 70 ° C

Min. non-operating ambient temperature -40 ° C

Max. humidity in off mode 95%

Min. humidity in idle mode 5%



Other features

Exterior color Black

Included accessories User guide



Dimensions & weight

Depth 150 mm

Height 150 mm

Width 86 mm

Nominal weight 1.55 kg



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 2 kg

Package weight - Net (kg) 2 kg

Number in package 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0.5 kg

Retail Packaging Net Weight Plastic 0.5 kg

Packages in cartons 1

Box type package

EAN code 4710483771521
