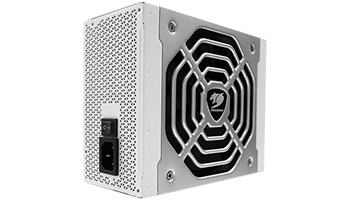

COUGAR GAMING CG31PL120000P01 1200W PSU



COUGAR POLAR 1200, 1200W, 80 Plus Platinum, 100% Refined Japanese Capacitors, Fully Modular Power Supply Unit, Zero Noise Mode and Fan Curve Tuning, Protection: UVP, OVP, SCP, OPP, OCP, OTP, 10 Year Warranty



Design and features

Power supply type Power supply module

Layout of the power supply Plug-in-module

Input voltage AC 100-240 V

Input frequency 47/63 Hz

Power input connectors - number 1

Power input connectors - type IEC-320 C14

Nominal Current 15 A

Maximum output power 1200 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Circuit Protection

Over Power

Modular Power Supply Yes

Power supply unit and adapter - Features Active PFC

80 Plus Certification 80 Plus Platinum

Efficiency 92%

Current

+3.3V 20A (50W)

+5V 20A (50W)

+12V 100 A (1200 W)

-12V 0.3A (3.6W)

+5VSB 3 A (15 W)

Output connectors

20+4-pin connector 1

4/8-pin +12V Power Connector 1

8 pin +12V power connector 1

4 pin peripheral power connector 4

15 pin S-ATA connector 12

6/8-pin PCI Express Connector 9

system fans

Number of fans installed 1

Fan - diameter 135 mm

Terms of use

Maximum ambient temperature 50 °C

Minimum ambient temperature 10 °C

Max. ambient air humidity 85 %

Min. working air humidity 20 %

Max. ambient temperature in off mode 70 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in non-operating mode 5 %

Other features

Exterior color Gray

Included accessories User manual

Dimensions & weight

Depth 180 mm

Height 150 mm

Width 86 mm

Nominal weight 1.55 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 3.59 kg

Package Weight - Net (kg) 2.09 kg

Quantity per pack 1

Carton weight - Gross (kg) 3.59 kg

Retail Packaging Net Weight Carton 1.5 kg

Retail Packaging Net Weight Plastic 1.5 kg

Packages in Carton 1

Package type Box

EAN code 4710483772351
