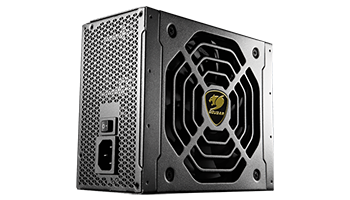

COUGAR GAMING CG31GE105003P01 PSU 1050W



COUGAR GEX1050, 1050W, 80 plus Gold, Protection: UVP, OVP, SCP, OPP, OCP, OTP, Connectors: 1x 24-pin MB, 2x 8-pin CPU, 6x PCI-E 8(6+2)-pin, 4x P-ATA, 12x SATA, Dimensions: 180 x 150 x 86 (mm)



Design and features

Power type Power supply module

Power supply location Internal

ATX form factor

Input voltage AC 100-240 V

Input frequency 47/63 Hz

Rated input current 13 A

Power input connectors - number 1

Maximum output power 1050 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Circuit Protection

Over Power

Modular Power Supply Yes

Power supply and adapter - Features Active PFC

80 Plus Certification 80 Plus Gold



Current

+ 3.3V 20 A

+ 5V 20 A

+ 12V 87.5 A (1050)

-12V 0.3 A (3.6)

+ 5VSB 3 A (15)



Output connectors

24 pin connector 1

4/8-pin + 12V Power Connector 1

8 pin + 12V power connector 1

4 pin peripheral power connector 4

15 pin S-ATA connector 12

6/8-pin PCI Express Connector 8



System fans

Max. number of fans supported 1

Number of fans installed 1

Fan - diameter 120 mm



Operating conditions

Maximum ambient temperature 40 ° C



Other features

Exterior color Black

Material Metal

Included accessories User guide



Dimensions & weight

Depth 150 mm

Height 86 mm

Width 180 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 2 kg

Package weight - Net (kg) 2 kg

Number in package 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0.1 kg

Retail Packaging Net Weight Plastic 0.1 kg

Packages in cartons 1

Box type package

EAN code 4710483772207
