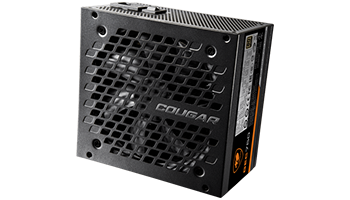

COUGAR GAMING CG31GC0750001P PSU 750W



COUGAR GEC 750, 750W, 80 plus Gold, Protection - UVP, OVP, SCP, OPP, OCP, OTP, Connectors: 1x 24-pin MB, 1x 8-pin CPU, 2x PCI-E 8(6+2)-pin, 3x P-ATA, 6x S-ATA, Dimensions: 140 x 150 x 86(mm)



Design and features

Power type Power supply module

Power supply Plug-in-module

ATX form factor

Input voltage AC 200-240 V

Input frequency 47/63 Hz

Power input connectors - number 1

Maximum output power 750 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Circuit Protection

Over Power

Modular Power Supply Yes

Power supply and adapter - Features Active PFC

80 Plus Certification 80 Plus Gold

Efficiency 99%



Current

+ 3.3V 20 A

+ 5V 20 A

+ 12V 45.8 A (549.6)

-12V 0.3 A (3.6)

+ 5VSB 3 A (15)



Output connectors

24 pin connector 1

4/8-pin + 12V Power Connector 2

4 pin peripheral power connector 3

15 pin S-ATA connector 6

6/8-pin PCI Express Connector 4



System fans

Max. number of fans supported 1

Number of fans installed 1

Fan - diameter 140 mm



Operating conditions

Max. operating ambient temperature 40 ° C



Other features

Exterior color Black

Material Metal

Included accessories User guide



Dimensions and weight

Depth 150 mm

Height 86 mm

Width 130 mm

Nominal weight 1.55 kg



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 2 kg

Package weight - Net (kg) 2 kg

Number in package 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0.1 kg

Retail Packaging Net Weight Plastic 0.1 kg

Packages in cartons 1

Box type package

EAN code 4710483771958
