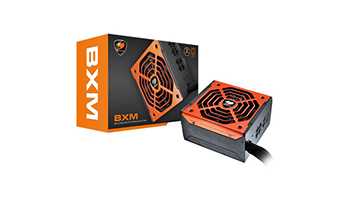

Cougar BXM700 700W Semi Modular 80 Plus Bronze CG31BX085001P01



COUGAR BXM 850, 80 Plus Bronze efficiency certification, 105ºC Japanese standby capacitors, Semi-modular Power Supply Unit, HDB Fan, Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP, Superior fan Curve Tuning



Design and features

Power supply type Power supply module

Power Location Internal

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Power input connectors - number 1

Power input connectors - type IEC-320 C14

Output voltage DC 3.3 / 5 / ± 12 V

Maximum output power 850 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Curcuit Protection

Over Power

Modular Power Supply Semi

80 Plus Certification 80 Plus Bronze

Current

+ 3.3V 25 A

+ 5V 25 A

+ 12V 70.8 A (850)

-12V 0.3 A

+ 5VSB 3 A

Output connectors

20 + 4-pin connector 1

4/8-pin + 12V Power Connector 2

4 pin peripheral power connector 3

15-pin S-ATA connector 8

6/8-pin PCI Express Connector 6

system fans

Max. number of fans supported 1

Operating conditions

Max. operating ambient temperature 40 ° C

Min. operating ambient temperature 10 ° C

Max. ambient humidity 85%

Min. operating humidity 20%

Max. ambient temperature in off mode 70 ° C

Min. non-operating ambient temperature -40 ° C

Max. humidity in off mode 95%

Min. humidity in idle mode 5%

Other features

Exterior color Black / Orange

Dimensions and weight

Depth 160 mm

Height 86 mm

Width 150 mm

Nominal weight 2.1 kg

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 3 kg

Package weight - Net (kg) 3 kg

Number in package 1

Carton weight - Gross (kg) 27 kg

Retail Packaging Net Weight Carton 3 kg

Retail Packaging Net Weight Plastic 3 kg

Packages in a carton 9

Box type package

EAN code 4715302444822
