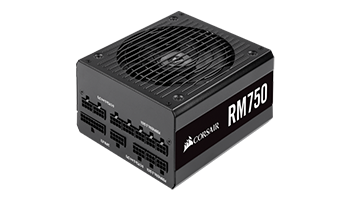

Corsair RM Series RM750 750W Full Modular 80 Plus Gold CP-9020195-EU
Corsair PSU Corsair RM series, RM750 80 PLUS Gold Fully Modular ATX power, EU Version
Design and features
Power supply type Power supply module
Power Location Internal
ATX form factor
Input voltage AC 100-240 V
Input frequency 47/63 Hz
Rated Input Current 10 A
Power input connectors - number 1
Power input connectors - type IEC-320 C14
Output voltage DC 3.3 / 5 / ± 12 V
Maximum output power 750 W
Over Voltage circuit protection
Undervoltage
Over Temperature
Short Curcuit Protection
Over Power
Modular Power Supply Yes
80 Plus Certification 80 Plus Gold
Current
+ 3.3V / + 5V 25 A (150 W)
+ 12V 62.5 A (750 W)
-12V 0.8 A (9.6 W)
+ 5VSB 3 A (15 W)
Output connectors
24 pin connector 1
4/8-pin + 12V Power Connector 1
4 pin peripheral power connector 7
15-pin S-ATA connector 8
6/8-pin PCI Express Connector 4
system fans
Number of fans installed 1
Fan - diameter 140 mm
Operating conditions
Max. operating ambient temperature 40 V ° C
Average time between failures 100000 hr
Other features
Exterior color Black
Power Cord cables included
Modular Cables
Cable Ties accessories included
Bag
User Guide
Dimensions and weight
Depth 180 mm
Height 86 mm
Width 150 mm
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 2 kg
Package weight - Net (kg) 2 kg
Number in package 1
Carton weight - Gross (kg) 4 kg
Packages in a carton 2
Package type With packaging
EAN code 840006604167
