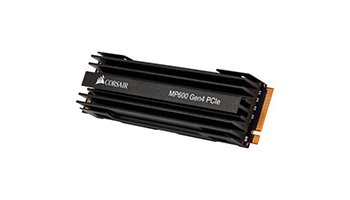

Force MP600 series Gen4 NVMe PCIe M.2 SSD 1TB; Up to 4,950MB/s Sequential Read, Up to 4,250MB/s Sequential Write CSSD-F1000GBMP600
Disk configuration
Device location Internal
Form factor M.2 (2280)
Storage device capacity 1 TB
Supported PCIe NVMe 4.0 x4 data channel
NAND Flash memory technology
Triple-Level Cell flash memory technology
SSD Cooling Method Heatsink
Exterior color Black
Productivity
Maximum Random Read Rate 600000 IOPS
Maximum Random Write Rate 680000 IOPS
Maximum Sequential Read Rate 4950 MB / s
Maximum Sequential Write Rate 4250 MB / s
Total Bytes Written (TBW) 1800 TB
Reliability
Average time between damages 1700000 hr
Solid State Drive Features AES 256-bit Encryption
DEVSLP Mode
Impact resistance when operating 1500G
Vibration tolerance during operation 20G @ 80-2000Hz
Energy consumption
Rated supply voltage 3.3 V
Maximum power consumption 6.5 W
Minimum power consumption 1.1 W
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient humidity 90%
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -40 V ° C
Max. humidity in off mode 93%
Dimensions and weight
Depth 23 mm
Height 15 mm
Width 80 mm
Nominal weight 0.034 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 1.5 kg
Package weight - Net (kg) 1.5 kg
Number in package 4
Carton weight - Gross (kg) 5 kg
Retail Packaging Net Weight Carton 6 kg
Retail Packaging Net Weight Plastic 6 kg
Packages in a carton 4
Package type With packaging
