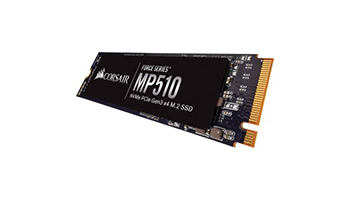

CORSAIR Force MP510 960GB SSD, M.2 2280, PCIe Gen3 x4, Read/Write: 3480 / 3000 MB/s, IOPS: 610K/570K CSSD-F960GBMP510B
Disk configuration
Location of the Plug-in Card device
Form factor M.2 (2280)
Storage device capacity 960 GB
Supported PCIe NVMe 3.0 x4 data channel
SSD Controller Phison E12
NAND Flash memory technology
Triple-Level Cell flash memory technology
Accessories included Quick Start Guide
Warranty Card
Exterior color Black
Productivity
Maximum Random Read Rate 610000 IOPS
Maximum Random Write Rate 570000 IOPS
Maximum Sequential Read Rate 3100 MB / s
Maximum Sequential Write Rate 1050 MB / s
Reliability
Average time between failures 18000000 hr
Solid State Drive Features TRIM Support
AES 256-bit Encryption
Auto Garbage Collection
Supported standards S.M.A.R.T.
Impact resistance when operating 1500G
Energy consumption
Rated supply voltage 3.3 V
Maximum power consumption 6.9 W
Operating conditions
Max. operating ambient temperature 65 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient humidity 90%
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -40 V ° C
Max. humidity in off mode 93%
Dimensions and weight
Depth 80 mm
Height 3 mm
Width 22 mm
Nominal weight 0.0082 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.06 kg
Package weight - Net (kg) 0.06 kg
Number in package 1
Carton weight - Gross (kg) 0.06 kg
Retail Packaging Net Weight Carton 0.06 kg
Retail Packaging Net Weight Plastic 0.06 kg
Packages in cartons 1
Package type With packaging
