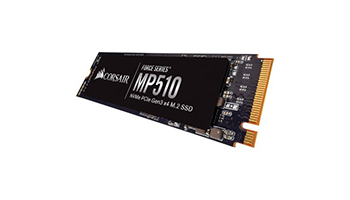

CORSAIR MP510 4TB SSD, M.2 2280, PCIe Gen3 x4, Read/Write: 3480 / 3000 MB/s, Read/Write IOPS: 580K/680K CSSD-F4000GBMP510
Disk configuration
Device location Internal
Form factor M.2 (2280)
Storage device capacity 4 TB
Supported data channel PCI Express 3.0 x4
NAND Flash memory technology
Triple-Level Cell flash memory technology
Accessories included Quick Start Guide
Exterior color Black
Productivity
Maximum Random Read Rate 580000 IOPS
Maximum Random Write Rate 680000 IOPS
Maximum Sequential Read Rate 3480 MB / s
Maximum Sequential Write Rate 3000 MB / s
Total Bytes Written (TBW) 6820 TB
Reliability
Average time between damages 1800000 hr
Solid State Drive Features AES 256-bit Encryption
DEVSLP Mode
Impact resistance when operating 1500G
Vibration tolerance during operation 20G @ 80-2000Hz
Energy consumption
Maximum supply voltage 5 V
Minimum supply voltage 3.3 V
Maximum power consumption 7.4 W
Minimum energy consumption 44 mW
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient humidity 90%
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -40 V ° C
Max. humidity in off mode 93%
Dimensions and weight
Depth 15 mm
Height 23 mm
Width 80 mm
Nominal weight 0.034 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.01 kg
Package weight - Net (kg) 0.01 kg
Number in package 1
Carton weight - Gross (kg) 0.01 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packages in cartons 1
Package type With packaging
