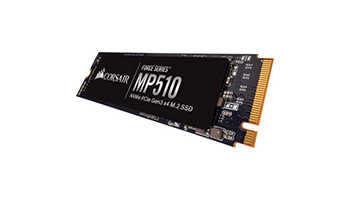

CORSAIR Force MP510 240GB SSD, M.2 2280, PCIe Gen3 x4, Read/Write: 3100 / 1050 MB/s, IOPS: 180K/240K CSSD-F240GBMP510
Disk configuration
Location of the Plug-in Module
Form factor M.2 (2280)
Storage device capacity 240 GB
Supported data channel PCI Express 3.0 x4
NAND Flash memory technology
Triple-Level Cell flash memory technology
Exterior color Black
Productivity
Maximum Random Read Rate 180000 IOPS
Maximum Random Write Rate 240000 IOPS
Maximum Sequential Read Rate 3100 MB / s
Maximum Sequential Write Rate 1050 MB / s
Total Bytes Written (TBW) 400 TB
Supported interfaces
M.2 Interface Quantity 1
Reliability
Average time between failures 18000000 hr
Solid State Drive Features AES 256-bit Encryption
Supported standards S.M.A.R.T.
Impact resistance when operating 1500G
Vibration tolerance during operation 20G
Energy consumption
Rated supply voltage 3.3 V
Operating conditions
Max. operating ambient temperature 70 ° C
Min. operating ambient temperature 0 ° C
Max. ambient humidity 90%
Max. ambient temperature in off mode 85 ° C
Min. non-operating ambient temperature -40 ° C
Max. humidity in off mode 93%
Dimensions and weight
Nominal weight 0.055 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.1 kg
Package weight - Net (kg) 0.001 kg
Number in package 1
Carton weight - Gross (kg) 1 kg
Retail Packaging Net Weight Carton 0.001 kg
Retail Packaging Net Weight Plastic 0.001 kg
Packages in a carton 10
Package type With packaging
