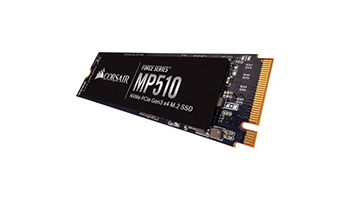

CORSAIR Force MP510 1920GB SSD, M.2 2280, PCIe Gen3 x4, Read/Write: 3480 / 2700 MB/s, IOPS: 485K/530K CSSD-F1920GBMP510
Disk configuration
Location of the Plug-in Card device
Form factor M.2 (2280)
Storage device capacity 1.92 TB
Supported data channel PCI Express 3.0 x4
NAND Flash memory technology
Triple-Level Cell flash memory technology
Exterior color Black
Productivity
Maximum Random Read Rate 485000 IOPS
Maximum Random Write Rate 530000 IOPS
Maximum Sequential Read Rate 3480 MB / s
Maximum Sequential Write Rate 2700 MB / s
Total Bytes Written (TBW) 3.12 TB
Supported interfaces
M.2 Interface Quantity 1
Reliability
Average time between damages 1800000 hr
Solid State Drive Features AES 256-bit Encryption
Supported standards S.M.A.R.T.
Impact resistance when operating 1500G
Vibration tolerance during operation 20G
Energy consumption
Rated supply voltage 3.3 V
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient humidity 90%
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -40 V ° C
Max. humidity in off mode 93%
Dimensions and weight
Depth 80 mm
Height 3 mm
Width 22 mm
Nominal weight 0.055 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 1.5 kg
Package weight - Net (kg) 11.8 kg
Number in package 4
Carton weight - Gross (kg) 5 kg
Retail Packaging Net Weight Carton 2 kg
Retail Packaging Net Weight Plastic 1 kg
Packages in cartons 1
Box type package
EAN code 840006603153
