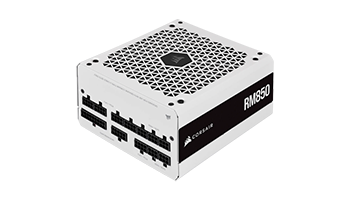

CORSAIR CP-9020232-EU RM850 PSU 850W
Corsair PSU 850W RM850 80+ Gold Fully-Modular white
Design and features
Power type Power supply module
Power supply location Internal
ATX form factor
Input voltage AC 100-240 V
Input frequency 47/63 Hz
Power input connectors - number 1
Power input connectors - type IEC-320 C14
Output voltage DC 3.3 / 5 / ± 12 V
Maximum output power 850 W
Modular Power Supply Yes
Power supply and adapter - Features Low noise
80 Plus Certification 80 Plus Gold
Efficiency 90%
Current
+ 3.3V 20 A
+ 5V 20 A
+ 12V 70.8 A (850 W)
-12V 0.3 A (3.6 W)
+ 5VSB 3 A (15 W)
Output connectors
24 pin connector 1
4/8-pin + 12V Power Connector 3
4 pin peripheral power connector 4
15 pin S-ATA connector 14
6/8-pin PCI Express Connector 4
System fans
Number of fans installed 1
Fan - diameter 140 mm
Operating conditions
Average time between damages 100000 hr
Other features
Exterior color White
Power Cord cables included
Modular Cables
Included accessories Documentation
Dimensions and weight
Nominal weight 1.65 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
