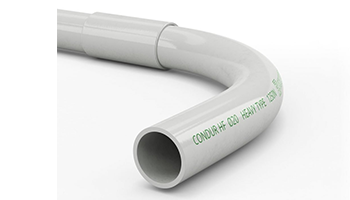

CONDUR HF BEND Halogen Free & Low Smoke L-joint Ø63, CONDUR HF BEND Ф63



Halogen Free & Low Smoke L-joint for corrugated and rigid pipes CONFLEX and CONDUR, internal / external installation. Non-combustible, UV stabilized PC material with resistance to UV radiation without halogen elements and without the release of toxic or corrosive gases in case of fire. Patented technology to reduce static electricity. Patented technology for PC material that does not attract rodents. Outer / Inner diameter 63 / 57mm; . Heavy Type with mechanical resistance ≥1250N / 5cm, impact bag. resistance: 6J (-25oC). Color: gray (RAL 7035). Operating temp: -25o ~ 120oC. Degree of protection with CONDUR connection: IP65. Suitable for installation in outdoor conditions, concrete, plaster, indoor: open surface, suspended ceiling, double floor, underground. Dimensions Ø63: 77x77mm @ R203mm;. VDE

EN certificates: EN61386-1: 2008; EN61386-21: 2004 + A11: 2010; EN61386-21: 2011-12.



Weight 0.012 Kgr
