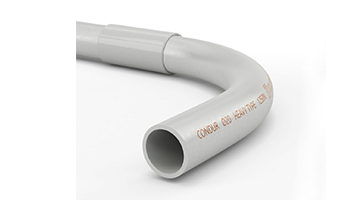

CONDUR BEND L-connection for corrugated and rigid pipes CONFLEX and CONDUR Ø63, CONDUR BEND Ф63



L-connection for corrugated and rigid pipes CONFLEX and CONDUR, internal / external installation. Non-flammable, UV stabilized U-PVC material with resistance to UV radiation. Patented technology to reduce static electricity. Patented technology for PVC material that does not attract rodents. Outer / Inner diameter 63 / 57.2mm. Heavy Type with mechanical resistance ≥1250N / 5cm, impact bag. resistance: 6J (-25ºC). Color: gray (RAL 7035). Working temp: -25º ~ 60ºC. Degree of protection with CONDUR connection: IP65. Suitable for installation in outdoor conditions, concrete, plaster, indoor: open surface, suspended ceiling, double floor, underground. Dimensions Ø16: 27x27mm @ R59mm; Ø20: 35x35mm @ R74mm; Ø25: 36.7x36.7mm@R108mm; Ø32: 47.6x47.6mm@R142mm; Ø40: 52.9x52.9mm@R144mm; Ø50: 62x62mm @ R175mm Ø63: 77x77mm @ R203mm. VDE EN certificates: EN61386-1: 2008; EN61386-21: 2004 + A11: 2010; EN61386-1: 2009-03; EN61386-1: 2008; EN61386-21: 2011-12.



Weight 0.012 Kgr
