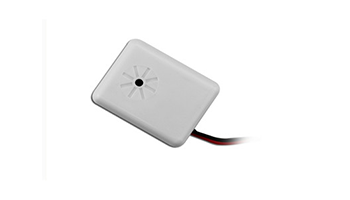

Condenser microphone CCTV SIZ-105



Electret condenser microphone. Omni-directional. Frequency x-ka 200Hz ~ 10kHZ. Sensitivity -55dB. Signal / noise 60dB (1m 40 dB useful signal level). Dynamic range 35dB (1kHz at max SPL). Maximum sound level 80dB SPL (1kHz, THD 1%). Impedance 600Ω, output signal level 2.5Vpp. PVC case. Power supply: DC9 ~ 18V / 25mA. Operating temperature: -25ºC ~ 40ºC. Dimensions: 40x30x20mm. For rooms with an area of 20m2. Weight 0.050 Kgr
