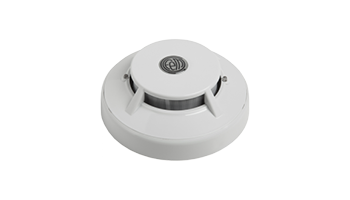

Cofem A35BS Conventional smoke optical fire detector

11.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 92048

Βάρος: 0.200 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Smoke-optical sensor based on Tyndall effect
Low profile design of the fire alarm detector - height of 45 mm (including the base)
Possibility of mounting on a high base when used with thicker wires
Two indicator LEDs for 360 ° visibility
Possibility to connect an external indicator
Easy installation, no polarity
Compatible with all types of conventional fire alarm control panels
Certified according to EN54-7 and in accordance with the European regulation for construction products N ° 305/2011
Supply voltage: 12 - 30V without polarity
Standby power consumption: 60 mA @ 18V
Alarm consumption: 40 mA @ 18V
Alarm for activated alarm: 2 pcs. red LED indicators with 360º visibility
Output for external indicator
Operating humidity: 20 - 95% RH
Operating temperature: -10ºC + 50ºC
Sensitivity: according to the requirements of EN 54-7
IP 40
Dimensions with mounting base: Ø107x45 mm

Τιμή Μονάδος: 11.90 €
Κατασκευαστής:
Βάρος: 0.200 kg
