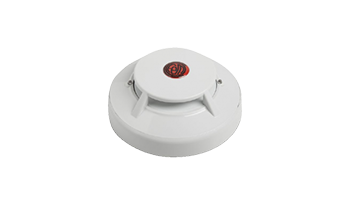

Cofem A30XTA Addressable combined thermodifferential fire alarm detector NEW

29.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 92076

Βάρος: 0.250 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

A30XTA is based on a thermistor element that captures changes in room temperature
The A30XTA can be used as a fixed temperature detector temperature detector or as a thermodifferential detector. If the fire event develops quickly, it will work as a thermodifferential, if the fire develops slowly - it will be activated when the room temperature reaches 55ºC.
Low profile design of the fire alarm detector - height of 45 mm (including the base)
Possibility of mounting on a high base when used with thicker wires
Two indicator LEDs for 360 ° visibility
Possibility to connect an external indicator
Easy installation, no polarity
Compatible with Cofem addressable fire alarm control panels
Sensor contamination status indication - active discrimination between a fire event and slow, gradual dust contamination of the sensor
Certified according to EN 54-5, class A2R and in accordance with the European regulation for construction products N ° 305/2011
Supply voltage: 24 - 35V without polarity
Standby power consumption: 1 mA
Alarm consumption: 5 mA
Alarm for activated alarm: 2 pcs. red LED indicators with 360º visibility
Output for external indicator
Operating humidity: 20 - 95% RH
Operating temperature: -10ºC + 50ºC
Sensitivity: according to the requirements of EN 54-5, Class A2R
IP 20
