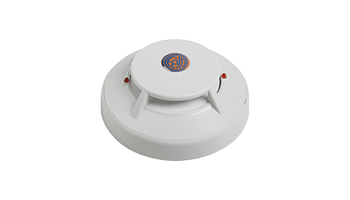

Cofem A30XT Conventional temperature thermodifferential fire detector

12.49 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 92049

Βάρος: 0.200 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

A30XT is based on a thermistor element that captures changes in room temperature
The A30XT can be used as a fixed temperature detector temperature detector or as a thermodifferential detector. If the fire event develops quickly, it will work as a thermodifferential, if the fire develops slowly - it will be activated when the room temperature reaches 55ºC.
Low profile design of the fire alarm detector - height of 45 mm (including the base)
Possibility of mounting on a high base when used with thicker wires
Two indicator LEDs for 360 ° visibility
Possibility to connect an external indicator
Easy installation, no polarity
Compatible with all types of conventional fire alarm control panels
Certified according to EN 54-5, class A2R and in accordance with the European regulation for construction products N ° 305/2011
Supply voltage: 12 - 30V without polarity
Standby power consumption: 60 mA @ 18V
Alarm consumption: 40 mA @ 18V
Alarm for activated alarm: 2 pcs. red LED indicators with 360º visibility
Output for external indicator
Operating humidity: 20 - 95% RH
Operating temperature: -10ºC + 50ºC
Sensitivity: according to the requirements of EN 54-5, Class A2R
IP 20
Dimensions with mounting base: Ø107x45 mm
