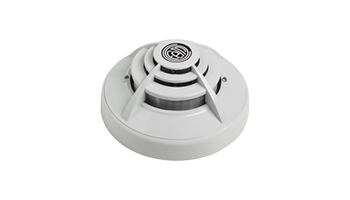

Cofem A30XHTCO Combined addressable smoke, temperature and CO fire detector
A30XHTCO offers a unique combination of three types of fire detectors: smoke, temperature and carbon monoxide. The use of a CO sensor is valuable in the early detection of some types of fire. In addition, integration with a smoke element results in a compact fire detector with a reduced number of false alarms. The integrated temperature sensor signals a fire event when the temperature reaches 55ºC
-
Low profile design of the fire alarm detector - height of 53.4 mm (including the base)
-
Possibility of mounting on a high base when used with thicker wires
-
Two indicator LEDs for 360 ° visibility
-
Possibility to connect an external indicator
-
Easy installation, no polarity
-
Compatible with Cofem addressable fire alarm control panels
-
Indication of sensor contamination status to the control panel - active discrimination between fire event and slow, gradual contamination of the sensor with dust
-
Certified according to EN54-7 and in accordance with the European regulation for construction products N ° 305/2011
-
Supply voltage: 24 - 35V without polarity
-
Standby power consumption: 1 mA
-
Alarm consumption: 5 mA
-
Alarm for activated alarm: 2 pcs. red LED indicators with 360º visibility
-
Output for external indicator
-
Operating humidity: 20 - 95% RH
-
Operating temperature: -10ºC + 50ºC
-
Sensitivity: according to the requirements of EN 54-7
-
IP 40
-
Life expectancy of the CO sensitive element: 5 years
