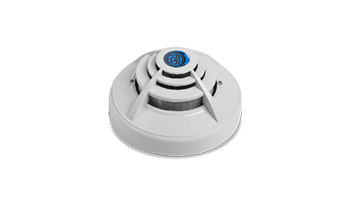

Cofem A30XHA Combined addressable smoke and temperature fire detector

29.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 92078

Βάρος: 0.300 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Smoke-optical sensor based on Tyndall effect
Temperature sensor with static thermal element that alerts for a fire event when the temperature reaches 55ºC.
Low profile design of the fire alarm detector - height of 53.4 mm (including the base)
Possibility of mounting on a high base when used with thicker wires
Two indicator LEDs for 360 ° visibility
Possibility to connect an external indicator
Easy installation, no polarity
Compatible with Cofem addressable fire alarm control panels
Sensor contamination status indication - active discrimination between fire event and slow, gradual dust contamination of the sensor
Certified according to EN54-7 and in accordance with the European regulation for construction products N ° 305/2011
Supply voltage: 24 - 35V without polarity
Standby power consumption: 1 mA
Alarm consumption: 5 mA
Alarm for activated alarm: 2 pcs. red LED indicators with 360º visibility
Output for external indicator
Operating humidity: 20 - 95% RH
Operating temperature: -10ºC + 50ºC
Sensitivity: according to the requirements of EN 54-7
IP 20
