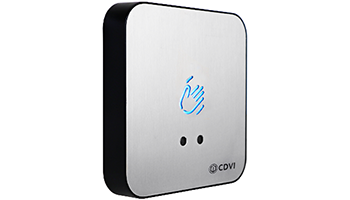

CDVI RTE-WIR metal exit button with infrared control



Stylish metal button with infrared control for surface mounting. Working distance: 3-15 cm and has a potentiometer to adjust the range and a relay for the opening duration: 0.1-30 sec. Stainless steel body. LED indication: blue-standby, green-activated. Power supply: 12- 24 VDC/ 2A-24VDc. COM/NO/NC. Operating temperature: -30 +550C. Dimensions: 86 x 86 x 14mm.
