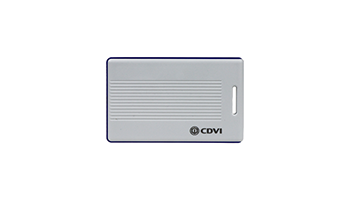

CDVI DTXT5434M Digitag Long Range Card With Motion Sensor



433MHz active RF card for RF reader with built-in sensor (accelerometer) for in-car use.



CDVI DTXT5434M | Digitag Long Range Card With Motion Sensor



The DigiTag-LR Long range active card is a battery supplied, active radio device, operating at 433,92 MHz in FM-FSK modulation.



The transmitter is available in 2 different versions: DTXT5434 which is the standard card, and the DTXT5434M which includes a built-in motion sensor.



These active cards are compatible with the DTRR1434 and DTRR1434R readers. The read range is adjustable from 1 metre up to approximately 18 metres depending on the environmental conditions (see reader manual for more details). The 3V lithium battery within the card is replaceable.



Features:



Frequency: 433.92 MHz.

Modulation: FSK

Replaceable CR2032 lithium battery.

Motion sensor activation: DTXT5434M, DTXT5434MP and DTXT5434MMI.

Dual-technologies:

RF/Proximity (DTXT5434P, DTXT5434MP),



RF/Mifare (DTXT5434MI, DTXT5434MMI).



Option: card holder (CLIPDIGITAGLR)



Technical Specifications:
