CDVI CA-A480-ANB Elevator controller for access control

744.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31336

Βάρος: 0.250 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

CDVI CA-A480-ANB Elevator controller for access control

Elevator controller. Controls up to 16 floors, 1 Controller CT-V900-A supports up to 8 elevator controllers. E-Bus wiring. Requires 16V, 40VA transformer.

Without a box. Can be placed in a box with a minimum size of 13 "X 16".

The optional module CA-A480-A connected to the E-Bus of the CT-V900-A controller for access control can control up to 16 floors. When a valid access control card is presented, the relay for the respective floor is activated, which allows the cardholder to select the desired floor.

Box size (H x W x D): 400 x 337 x 105 mm

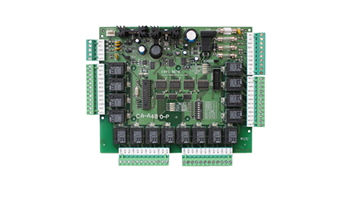

Printed circuit board size (H x W): 140 x 80 mm
16 floor relays on the board, in addition to the input for control of the system by the fire alarm system
Controls up to 64 floors and 2 elevator cabins
Floor reporting via module CA-A482-P
Connects directly to RS-485 communication bus
Individual schedule by floors
Spare battery with selectable current to charge the battery
Full module monitoring (tamper, low battery and AC power problem) and full-featured LED display
Tamper and input from the fire alarm system: 1
Relay outputs of the additional access control module: 16 Form C relays

Τιμή Μονάδος: 744.90 €
