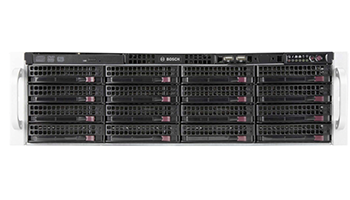

Bosch DIP-73G0-00N DIVAR IP all-in-one 7000 3U (gen 3) 256 ch NVR



The DIVAR IP all-in-one 7000 family is an affordable, simple and reliable all-in-one recording, viewing and management solution for network surveillance systems of up to 256 channels (with 8 channels pre- licensed).

DIVAR IP all-in-one 7000 3U is a 3HU rack mount unit that combines advanced management and state-of- the-art recording management into a single cost- effective, plug-and-play IP recording appliance for IT- minded customers.





256-channel network recorder-server (NVR), supplied with 8-channel licenses included (extension with MBV-BPLU-DIP / MBV-1CHAN-DIP licenses); bandwidth capacity: 550 Mbit / s; Intel Xeon E-2226GE processor (3.4Ghz / 12MB cache); RAM: 16GBDR3-2666; possibility to add up to 16 HDDs (up to 192TV in total); 2x120GB SSDs for operating system (RAID 1); RAID 5/6 support (built-in SAS RAID controller); Intel HD video card (2xDisplay port, 1xDVI port); 2xUSB 2.0 / 3xUSB 3.0 / 1xUSB-C port; DVD recorder; 2x1Gbit network ports; Windows Server IoT 2019; embedded Bosch BVMS software; reserved power supply 1200W; 220Vac; chassis for mounting in Rack cabinet (3U)
