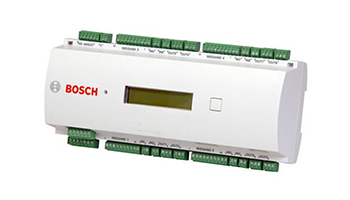

Bosch APC-AMC2-4WCF Access Modular Controller





The AMC2 (Access Modular Controller) is used as an access controller in the access control systems:



• BISACE (Access Engine) from version 2.0 onward

• AMS (Access Management System)

• APE (Access Professional Edition).



The device controls a group of one to eight access points. These access points, also known as entrances, can be:



• doors

• gates

• barriers

• turn stiles

• revolving doors

• mantraps

• ID card, PIN and biometric readers

• door opening elements

• sensors



AMC2 Wiegand controller for 4 doors single-sided, 2 double-sided or elevator control, 8 relay outputs / 8 status inputs, IP communication / RS-485.2GB Flash memory guaranteeing operation in Offline mode, IP30 - operating temperature: 0 ° C to + 50 ° C, Consumption: 10-30VDC / 65VA max, for DIN rail mounting
