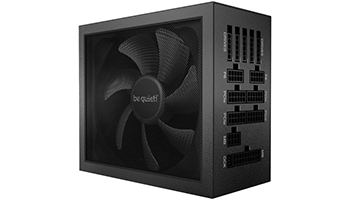

BE QUIET BN315 DARK POWER PRO 12
be quiet! DARK POWER 12 850W, 80 PLUS Titanium, Silent Wings, full-mesh PSU front, Modular cable management, 10-year warranty
Design and features
Power type Power supply module
Power supply Plug-in-module
Input voltage AC 100-240 V
Input frequency 50/60 Hz
Rated Input Current 9 A
Maximum output power 850 W
Modular Power Supply Yes
Power supply and adapter - Features Active PFC
80 Plus Certification 80 Plus Titanium
Current
+ 3.3V 24 A
+ 5V 24 A
+ 12V1 30 A
+ 12V2 30 A
+ 12V3 35 A
+ 12V4 35 A
-12V 0.5 A (6)
+ 5VSB 3 A (15)
Output connectors
20 + 4-pin connector 1
4 pin + 12V power connector 2
4/8-pin + 12V Power Connector 1
8 pin + 12V power connector 1
15 pin S-ATA connector 5
6/8-pin PCI Express Connector 6
Operating conditions
Max. operating ambient temperature 40 ° C
Other features
Exterior color Black
Material Steel
Cables included Power cord
Included accessories Quick start guide
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 4.2 kg
Package weight - Net (kg) 4.2 kg
Number in package 1
Weight per carton - Gross (kg) 4.2 kg
Retail Packaging Net Weight Carton 4.2 kg
Retail Packaging Net Weight Plastic 4.2 kg
Packages in cartons 1
Box type package
EAN code 4260052188019
