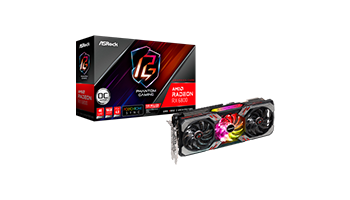

ASROCK RX6800 PGD 16GO RX 6800 Phantom Gaming D 16G OC video card
Video output
PCI Express 4.0 x16 expansion slot required
AMD Radeon RX 6800 video card chipset
GPU - Core Name Navi 21
GPU core speed 1850 MHz
GPU Core Speed Boost 1980 MHz
Number of GPUs 1
Number of thread processes 3840
Compute Units Quantity 60
Texture Mapping Unit Quantity 240
Render Output Units Quantity (ROP) 96
Max. Monitors Supports 4
Maximum resolution 7680x4320
2D/3D features AMD FreeSync
AMD Radeon Image Sharpening
AMD Radeon Boost
AMD FidelityFX
AMD Radeon Anti-Lag
RDNA 2 Architecture
DirectX 12.0 API support
OpenGL 4.6
Fill Rate (textures) 505.2 GT/s
Fill rate (pixels) 202.1 GP/s
Memory
Video memory type Video card memory
Memory type GDDR6 SDRAM
Installed video memory 16 GB
Video memory speed 16 Gbps
Memory bus capacity 256 bit
Memory channel width 512 GB/s
Supported interfaces
Number of HDMI interfaces 1
Type HDMI Interface Connectors HDMI (Type-A)
Number of monitor interface connectors 3
System Requirements
External Power 2 x 8 pin
Required power supply 700 W
Other features
Cooling system - type VGA Cooler (3 Slot)
Card Slot Width 2.75 slots
Features of a video card RGB LED
Included accessories Documentation
Dimensions and weight
Depth 305 mm
Height 55 mm
Width 131 mm
Nominal weight 1306 g
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.1 kg
Package Weight - Net (kg) 0.1 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.1 kg
Retail Packaging Net Weight Carton 0.1 kg
Retail Packaging Net Weight Plastic 0.1 kg
Packages in Carton 1
Package type With packaging
