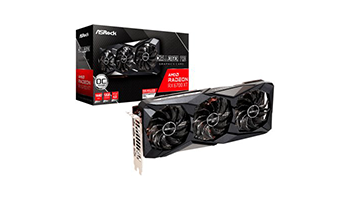

ASROCK RX6700XT CLP 12GO Radeon Phantom Gaming
Asrock Video Card AMD Radeon Phantom Gaming RX6700XT CLP 12GO (RX6700XT, 2620/2375 MHz, 12GB 192-bit GDDR6, 1xHDMI, 3xDP 1.4, 2x8 pin, Recommended PSU 700W)
Video output
PCI Express 4.0 x16 expansion slot required
ATX form factor
AMD Radeon RX 6700 XT video card chipset
GPU - Core Name NAVI 21
GPU core speed 2375 MHz
GPU Core Speed Boost 2620 MHz
Number of GPUs 1
Number of thread processes 2560
Texture Mapping Unit Quantity 160
Render Output Units Quantity (ROP) 64
Max. Monitors Supports 4
Maximum resolution 7680x4320
2D/3D features AMD Radeon Boost
RDNA 2 Architecture
OpenCL API support
DirectX 12.0
OpenGL 4.6
Fill Rate (textures) 413 GT/s
Fill rate (pixels) 165.2 GP/s
Memory
Video memory type Video card memory
Memory type GDDR6 SDRAM
Installed video memory 12 GB
Video memory speed 16 Gbps
Memory bus capacity 192 bit
Memory channel width 384 GB/s
Supported interfaces
Number of HDMI interfaces 1
Type HDMI Interface Connectors HDMI (Type-A)
Number of monitor interface connectors 3
System Requirements
External Power 2 x 8 pin
Required power supply 700 W
Other features
Cooling system - type VGA Cooler
RGB Fusion video card features
Included Accessories Quick User Guide
Dimensions and weight
Depth 303 mm
Height 45 mm
Width 131 mm
Nominal weight 890 g
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1 kg
Package Weight - Net (kg) 0.89 kg
Quantity per pack 1
Carton weight - Gross (kg) 1 kg
Retail Packaging Net Weight Carton 0.89 kg
Retail Packaging Net Weight Plastic 0.89 kg
Packages in Carton 1
Package type With packaging
