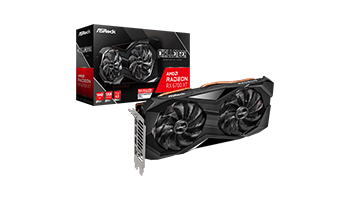

ASROCK RX6700XT CLD 12GO Challenger D 12G OC
Asrock AMD Radeon RX6700XT Challenger D 12G OC, GDDR6 192 bit, 1xHDMI, 3xDP 1.4, power 2x8 pin, recomended PSU 650W.
Video output
PCI Express 4.0 x16 expansion slot required
Full-height form factor
AMD Radeon RX 6700 XT video card chipset
GPU - Core Name NAVI 22
GPU Core Speed Boost 2581 MHz
Number of GPUs 1
Number of thread processes 2560
Compute Units Quantity 40
Texture Mapping Unit Quantity 160
Render Output Units Quantity (ROP) 64
Max. Monitors Supports 4
Maximum resolution 7680x4320
2D/3D features HDCP(High-Bandwidth Digital Content Protection)
AMD FreeSync
AMD Radeon Boost
RDNA 2 Architecture
DirectX 12.0 API support
OpenGL 4.6
Fill Rate (textures) 413 GT/s
Fill rate (pixels) 165.2 GP/s
Memory
Video memory type Video card memory
Memory type GDDR6 SDRAM
Installed video memory 12 GB
Video memory speed 16 Gbps
Memory bus capacity 192 bit
Memory channel width 384 GB/s
Supported interfaces
Number of HDMI interfaces 1
Type HDMI Interface Connectors HDMI (Type-A)
Number of monitor interface connectors 3
System Requirements
External Power 2 x 8 pin
Required power supply 650 W
Other features
Cooling system - type VGA Cooler
Card Slot Width 2.1 slots
Included accessories Documentation
Dimensions & weight
Depth 269 mm
Height 41 mm
Width 134 mm
Nominal weight 784 g
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.85 kg
Package Weight - Net (kg) 0.784 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.85 kg
Retail Packaging Net Weight Carton 0.784 kg
Retail Packaging Net Weight Plastic 0.784 kg
Packages in Carton 1
Package type With packaging
