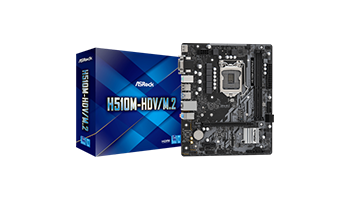

ASROCK H510M-HDV/M.2 H510

89.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 43463

Βάρος: 0.500 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

ASROCK H510M-HDV/M.2 H510

ASROCK Main Board Desktop H510M-HDV/M.2 (H510, S1200, 2xDDR4, 1xPCIe 4.0x16, 1xPCIe 3.0x1, 4 SATA3 , 1xM.2, 4x USB3.2 Gen1, 6xUSB2.0, VGA,DVI-D, HDMI, GLAN, mATX, Retail)

Main Board Desktop - Processor

Intel H510 motherboard chipset

Intel 10th Gen Processors

Intel 11th Gen Processors

Socket 1200 processor socket

Intel® Rapid Storage Technology enterprise architecture

Intel Turbo Boost Max Technology 3.0

Max. number of installed processors 1

Main Board Desktop - Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 2133MHz(PC3-17066)

2400MHz(PC4-19200)

2666MHz(PC4-21300)

2800MHz(PC4-22400)

2933MHz(PC4-23400)

3200MHz(PC4-25600)

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Offers a non-ECC error checking method

Memory Features Two DDR Channels

Unbuffered

XMP 2.0

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 5, Level 1+

SATA III-600 (4)

Storage Controller:

PCIe 3.0 x4/SATA (1 x M.2 (Key M))

Main Board Desktop - Audio Output

Audio integrated Yes

Device Location Built-in

Audio chipset Realtek ALC897

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Intel i219V network card chipset

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

PCI Express 4.0 x16 1

PCI Express 3.0 x1 1

Supported interfaces

DVI 1 (DVI-D)

HDMI 1 (HDMI (Type A))

VGA 1 (15-pin D-sub)

USB 3.2 Gen 1 2 (USB 3.2 (type A))

USB 2.0 4 (USB 2.0 (type A))

LAN 1 (RJ-45)

Audio interface 3 (3.5 mm mini jack)

PS/2 2

Desktop Motherboard - Features

BIOS type AMI

BIOS features Multi-language BIOS

SMBIOS 2.7 Support

PXE boot

128Mb AMI UEFI Legal BIOS with GUI Support

ACPI 6.0 Support

Wake/Sleep Wake on LAN

Hardware monitoring Chassis Fan Tachometer

CPU Fan Tachometer

System Voltage

Power connector type 24+8 pin

Main Board Desktop - Software

Windows 10 operating system supported

Other features

Cables included 2 x SATA 6Gb/s Cables

I/O Drive accessories included

Quick User Guide

Screws

Driver CD

Main Board Desktop - Dimensions&Weight

Micro ATX form factor

Height 188 mm

Width 226 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 0.5 kg

Package Weight - Net (kg) 0.4 kg

Quantity per pack 1

Carton weight - Gross (kg) 20 kg

Retail Packaging Net Weight Carton 0.1 kg

Retail Packaging Net Weight Plastic 0.1 kg

Packages in a carton 10

Package type With packaging

Τιμή Μονάδος: 89.90 €
Κατασκευαστής:
Βάρος: 0.500 kg
