AMC X864 hybrid control panel expandable to 64 zones, KIT-505



Hybrid control panel X864 expandable up to 64 zones, built-in 8 wired zones, expandable up to 64 wired and / or wireless zones. Outputs: 4x PGM programmable output 100mA OC Negative, expandable up to 17 with Output relay expander and / or keyboards, 2x Relay NO / NC (2A / DC30V) output, 1x Output control siren with drop plus, 1x output for piezo siren , 1x Tamper zone entrance, 1x Box tamper entrance. Supports division of 8x partitions, 4x Groups. Supports Double and Triple ATZ + Tamper, Single, Double and Triple EOL. Supports 8x Keyboards, 2x Wireless Extenders, 8x BUS Access Control Module. Memory for 64 users, 1000 events. Built-in PSTN dialer, Built-in speaker, Built-in microphone. Interfaces: 1x RS485 BUS, 1x 1x PC Com, 1x AUX output DC13.8V / 500mA, 1x 500mA output for battery up to 17Ah. Hardware reset on the board. Intuitive user menu in Bulgarian work and programming via keyboard or PC software via USB converter. Ability to add two communication modules IP and / or GPRS module for Management and alarm Pop-Up notifications in the Mobile application AMC Plus + (Android / iOS), AMC cloud without the need for a public IP address. Power supply: AC18V / 87mA. Certificates: EN50131, Security Grade 2, Environmental Class II.

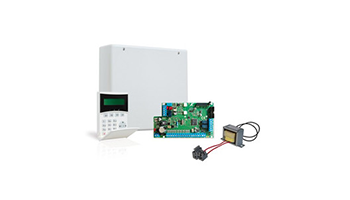

X864 control panel set, K-LCD LIGHT LCD keyboard, PVC box and power transformer with chandelier terminal with fuse. PVC box with dimensions: 300x400x90mm / 1.5kg, space for 1x7Ah batteries and additional modules RF A073-00-01, Ethernet A083-00-02 and GPRS A081-00-01.



Weight 2.050 Kgr
