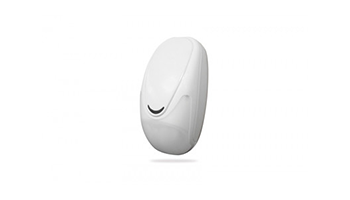

AMC Wireless digital PIR detector IF 800/P



Wireless digital PIR detector with immunity for animals up to 15kg, range 15m @ 90 °. Two-way communication with operating frequency 868.3 MHz, FSK modulation, 128-bit AES encrypted variable code. Maximum range in direct visibility 700m. Dual PIR element, Optimized Fresnel lens with 31 zones in 3 levels, Digital signal processing with intensity and speed analysis to minimize false alarms. Optimized operation mode to extend battery life, in "armored" mode sends status and alarm, when the panel is deactivated sends only status in 20min. Sent status: Battery level, signal level, alarm, tamper, I / O status. Training with built-in button or serial number. Diode indication (On / Off from the panel). Three levels of sensitivity programmable from the panel. Tamper on the lid, rear tamper. Possibility for wall and ceiling mounting with optional stands SN2 and SN4, mounting height 2m. Consumption: 6.7μA (stanby), 17mA (alarm), Battery: 1 / 2AA, 3.6V, battery life ~ 4 years. Dimensions: 110x60x46mm. Operating temperature: 5 ° ~ 40 ° C.



Weight 0.080 Kgr
