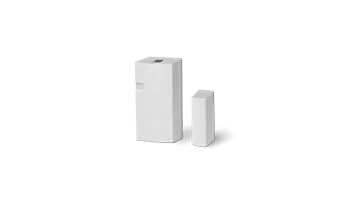

AMC Mini Wireless Contact CM 800 mini



Mini Wireless Digital Magnetic Contact MUK. Two-way communication with operating frequency 868.3 MHz, FSK modulation, 128-bit AES encrypted variable code. Maximum range in direct visibility 500m. Optimized operation mode to extend battery life, in "armored" mode sends status and alarm, when the panel is deactivated sends only status in 20min. Sent status: Battery level, signal level, alarm, tamper, I / O status. Training with built-in button or serial number. Tamper on the lid. 1x Input for external contact, 1x Input for impulse contact. Consumption: 1.2μA (stanby), 25mA (alarm), Battery: 1 / 2AA, 3.6V, battery life ~ 4 years. Dimensions: 25x50x17mm. Operating temperature: 0 ° ~ 40 ° C. Option: CM 800 mini M in brown color.



Weight 0.040 Kgr
