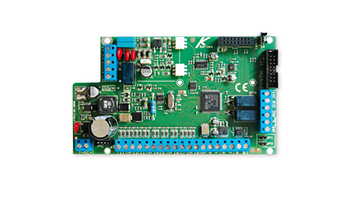

AMC K4 hybrid control panel expandable to 64 zones, SC K8 PLUS



Hybrid control panel K4 expandable up to 64 zones, built-in 8 wired zones, expandable up to 64 wired / wireless zones. Outputs: 1x PGM programmable output 100mA OC Negative, expandable up to 17 with Output relay expander and / or keyboards, 1x Relay NO / NC (2A / DC30V) output, 1x Tamper zone input, 1x Box tamper input. Supports division of 8x partitions, 4x Groups. Supports Double and Triple ATZ + Tamper, Single, Double and Triple EOL. Supports 8x Keyboards, 2x Wireless Extenders, 8x BUS Access Control Module. Memory for 64 users, 1000 events. Built-in PSTN dialer. Interfaces: 1x RS485 BUS, 1x 1x PC Com, 1x AUX output DC13.8V / 900mA, 1x 500mA output for battery up to 17Ah. Hardware reset on the board. Intuitive user menu in Bulgarian work and programming via keyboard or PC software via USB converter. Ability to add two communication modules IP and / or GPRS module for Management and alarm Pop-Up notifications in the Mobile application AMC Plus + (Android / iOS), AMC cloud without the need for a public IP address. Power supply: AC18V / 90mA. Certificates: EN50131, Security Grade 2, Environmental Class II.



Weight 0.100 Kgr
