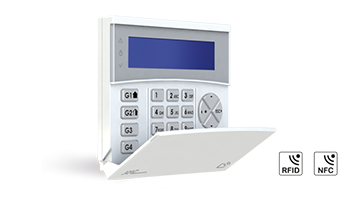

AMC K-lcd wireless

Wireless LCD keyboard. Two-way connection to the R400 and Belbox alarm panel. Only power the battery. Use of the EXPR / S 32 expander is required to communicate with other AMC Electronica alarm panels.



K-lcd (W 900 - 32 characters LCD wireless keypad - 916 MHz)

Bidirectional wireless keypad powered by batteries (2 batteries AAA - Alkaline 1.5V). It can be fed with external power (4 - 18 Vdc). It is equipped with a LCD display 32 characters on two lines, and a programmable NFC / RFID tag reader, with which it is possible to arm / disarm and enable / disable programmed outputs. It is a full bidirectional keypad and allows the user to have a real feedback of the status of the system (not ready zones, troubles etc.).

Features:

•  Arm / disarm panel (in all configurations)
•  Not ready zones alert
•  Bypass zones
•  Change / modify personal user code
•  Allow technical access
•  Log event reading
•  Outputs triggering
•  Tag readers management

Dimensions: W 135, H 116, D 24 mm
