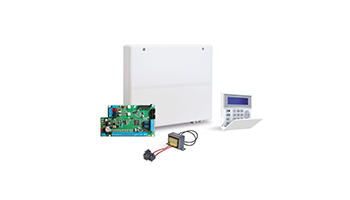

AMC K-8 control panel

K-8 series control panels

Designed for building protection and in accordance with CEI EN 50131-3: 2009, CEI EN 50131-6: 2008 Grade: 2. The control panels have 8 zones with the possibility of extending up to 24 zones without additional expansors. This is achieved with double or triple EOL resistors for the line. A metal box, power supply and LCD keyboard are included.



The K Series are security control panels for building protection; hybrid system (wired and wireless input); EN 50131, Grade 2, Class 2 approved. The control panel is equipped of 4/8 zones, expandable to 16/64. It is possible to obtain more zones by double and triple EOL split line (K4-K8). K Series are able to notify one or more situations of ALARM, ROBBERY, TAMPERING and TROUBLE with different carriers:



•  PSTN LINE on board (voice call, Contact ID, SIA fsk, etc.)

•  GPRS/3G module (voice call, SMS, Contact ID, DC09 IP protocol for Contact ID and SIA IP)

•  IP module (DC09 IP protocol for Contact ID and SIA IP)



The panel can be controlled by new App AMC PLUS (iOS / Android) with IP module and/or GPRS / 3G module. The programming can be made with keypad and/or PC software. The programming with software can be made remotely with IP module and/or GPRS / 3G module.
